25.6V 100Ah Lithium ion LiFePO4 Battery Pack for Telecom UPS Solar Energy Storage 24V 100Ah

2021-08-07 03:05

Specification

Battery Type:
LiFePO4 battery
Rated Voltage
25.6V
Rated Capacity
100Ah
Standard Charge Current
20A
Max. Charge Current
50A
Standard Discharge Current
50A
Max. Discharge Current
100A
Max. Charge Voltage
29.2V
Working Temperature (CC/CV)
Charge: 0~45℃; Discharge: -20~60℃
Self-discharge
25°C,monthly ≤3%
Cycle Life
≥5000 cycles
Dimension
440*440*133mm or customized
Weight
32 kg
Communication Ports
TTL232、RS485、CANBus、Bluetooth Optional
Display
Yes
Connection
Support up to 15 pieces connected in parallel

Advantages

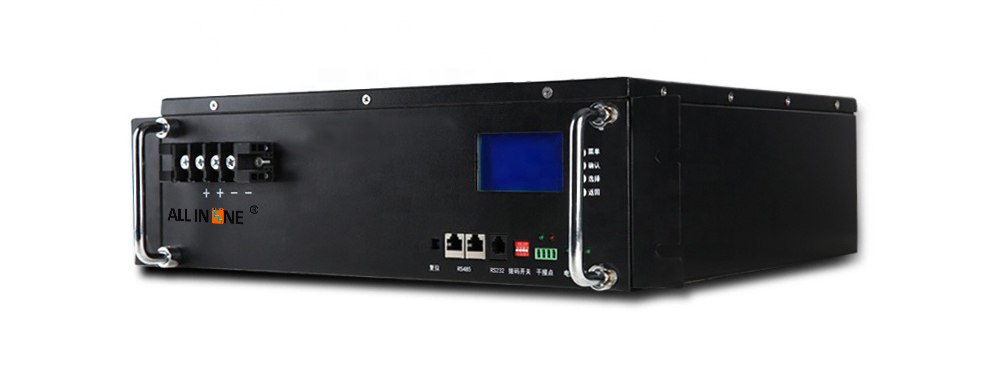

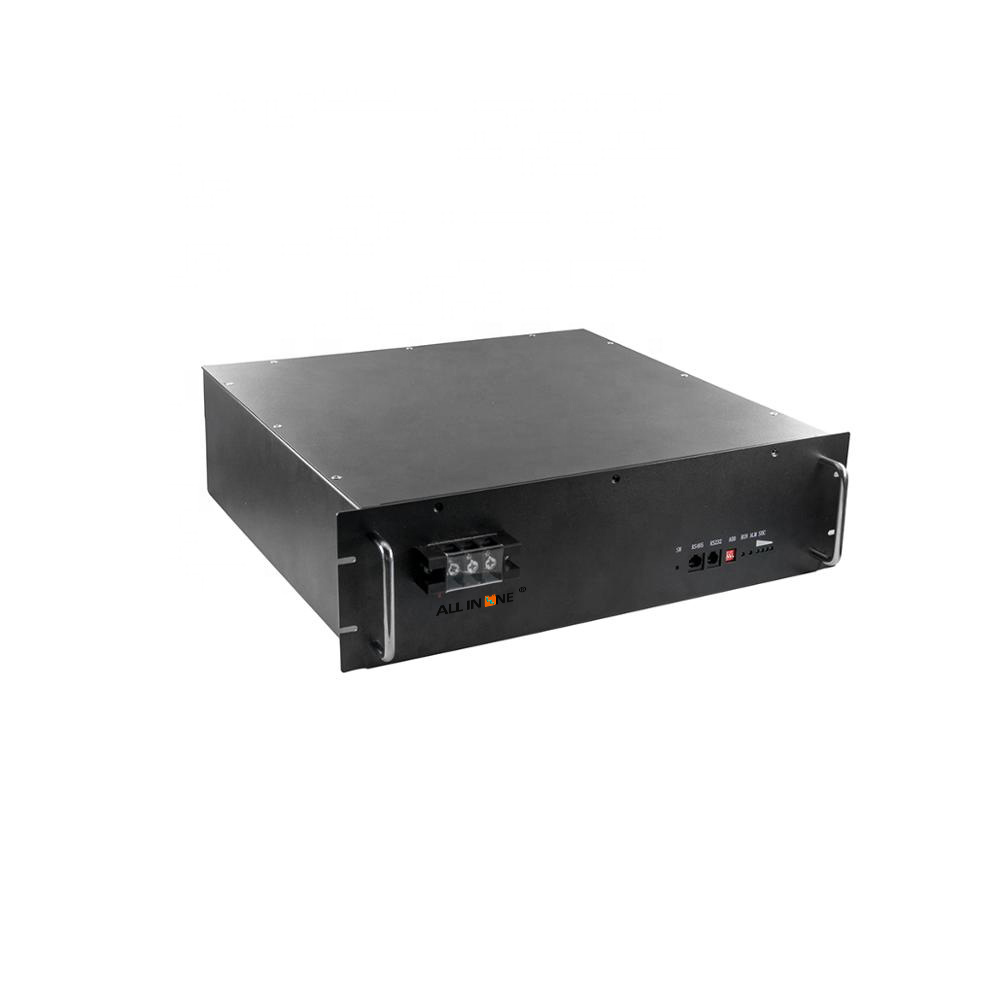

This 24V100Ah LFP battery system has built-in BMS and stainless steel box painted in black or white.
1. Maintenance free. Modular design for easy installation and capacity expansion.
2. Long cycle life (more than5000 cycles at 80% DOD)
3. Bulit-in smart BMS with multiple protection and communication functions
4. Wide working temperature range and high reliability
5. Multiple battery units can be connected in parallel,suitable for high energy storage applications.
6. Compatible with various charge controllers and inverters
7. Widely used for off-grid solar system storage, telecom back-up, central data center...etc.
Related LiFePO4 Battery Packs
Application
These products are widely used on Solar System,Caravan,Yacht, Fishing Boat,Golf Trolley Cart, E-rickshaw, AGV, AMR, Forklift,UPS, 5G Communication Base Station, Auxiliary Power Supply System for car or bus etc.
Our Factory
Our service

1>Customized battery voltage and capacity
2>Customized battery case,plastic case,PVC,metal case
3>Customized BMS

4>Delivery support
we can support RS485/RS232/CANBUS/Bluetooth solution, support active equalization scheme, and developed battery self-heating scheme and load-weight scheme.
Packing And Shipping
FAQ
Q1. Can ALL IN ONE Battery Technology Co.,Ltd. ship battery out of China?
R1: Yes, we can ship to any country out of China, you can tell us your address to check.
Q2. How does ALL IN ONE Battery Technology Co.,Ltd. ship the LiFePo4 battery packs?
R2: For sample order or small battery packs, we can ship by express through Fedex, UPS, TNT etc. If whole parcel over 100KG, can ship by air or by sea, sea shipping is more cheaper. Customer can tell your nearest airport name and sea port name for Lithium Valley sales person to check the best option for you.
Q3. Can we put different LiFePO4 battery pack in parallel or series by ourself?
R3: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention;
1> Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate.
2> Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3> Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for each battery.
4> If you are not professional in parallel and series batteries, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of battery.
Q4. Can we put different LiFePO4 battery pack in series by ourself?
R4: You can buy big voltage directly from us. We suggest do not out them in series by yourself, it will hurt the cycle life of the pack.
Q5. Does your battery pack include BMS? Can we use it for car?
R5: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car. Do not use it for standard car directly, that will need more complex design BMS for the pack.
Q6. What is your warranty?
R6: We offer 2 years warranty for all our battery pack. we ensure at least 2000 cycle life for the LiFePO4 battery pack, which means, after [email protected]% DOD, there will still around 60% capacityt left. You can use it for at least 5 years for normal 1 time charge and discharge everyday.

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
