24V 500Ah Lithium ion Lifepo4 Battery for Telecom UPS Solar Energy Storage 24V 500Ah

2021-08-11 02:56

Specification

Battery Type:	LiFePO4 battery
Rated Voltage	25.6V
Rated Capacity	500Ah
Max. Charge Current	100A
Max. Discharge Current	300A
Charge Cut-off Voltage	29.2V
Working Temperature (CC/CV)	Charge: 0~45℃; Discharge: -20~60℃
Self-discharge	25°C，monthly ≤3%
Cycle Life	≥4000 cycles
Dimension	600485390mm or customized
Weight	110 kg
Communication Ports	TTL232、RS485、CANBus Optional
Bluetooth	Optional
Display	Optional

Advantages

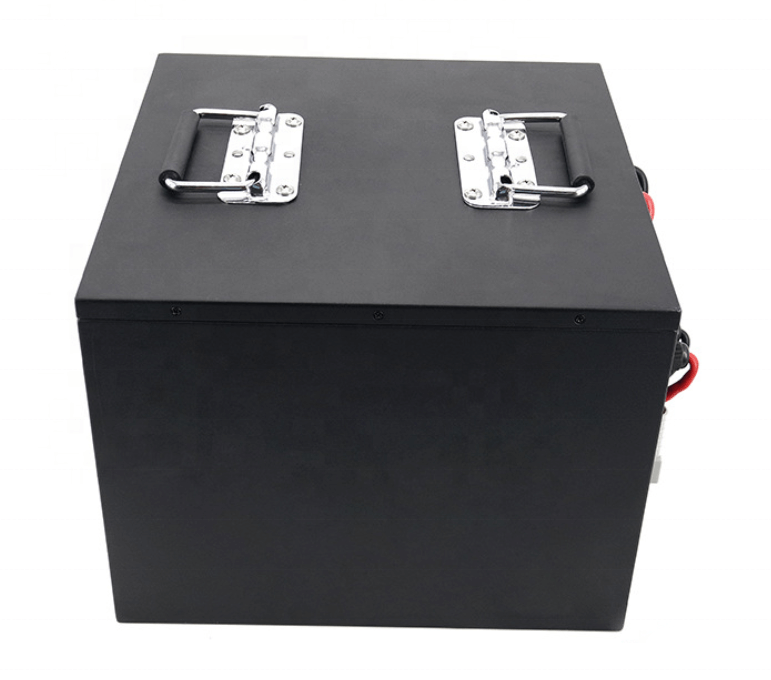

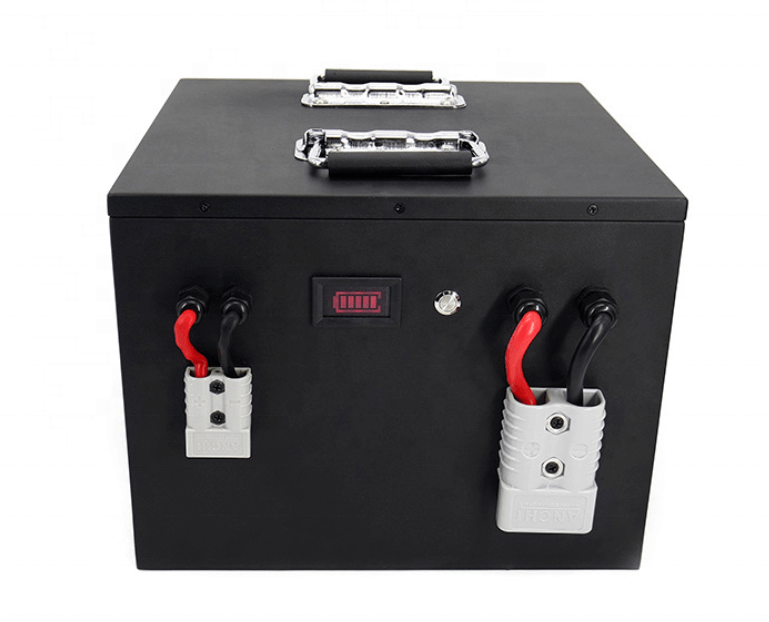

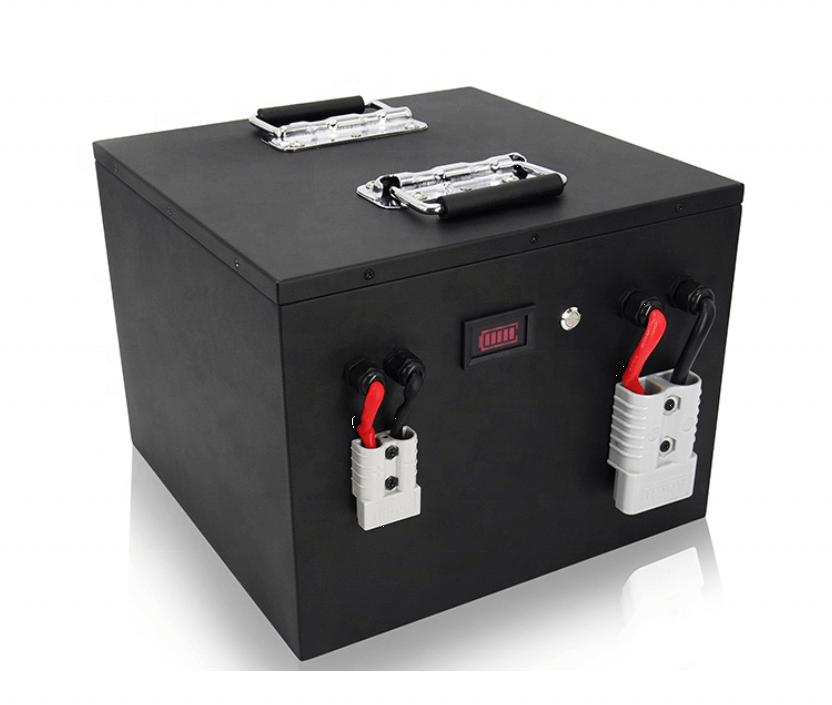

This 24V500Ah LFP battery system has built-in BMS and stainless steel box painted in black or white.

1. Maintenance free. Modular design for easy installation and capacity expansion.

2. Long cycle life (more than 5000 cycles at 80% DOD)

3. Bulit-in smart BMS with multiple protection and communication functions

4. Wide working temperature range and high reliability

5. Multiple battery units can be connected in parallel,suitable for high energy storage applications.

6. Compatible with various charge controllers and inverters

7. Widely used for off-grid solar system storage, telecom back-up, central data center...etc.

Related LiFePO4 Battery Packs

Application

SLA battery replacement
UPS
Solar & Wind power system
Golf Cart
E-bike, E-scooter
Lighting

Our Factory

1.ALL IN ONE is in the lithium battery filed with around 11 years, the factory is around 50000 squre meters.

2.ALL IN ONE had around 50 engineers in structural,software and hardware ,they are all in the lithium battery filed within around 5-10 years.

3.ALL IN ONE had some big project in Canada ,Australia and Netherlands ,all of Our designs and processes are in line with the high-end market.

4.ALL IN ONE also have a good BMS supplier who is the first brand in China with high techical and good service .

Packing And Shipping

FAQ

Q1:Can I have samples to test? And what is lead time for sample order?
A1:Yes,we can supply samples,the lead-time for samples is 7-10 days.and buyer pay for sample cost and shipping cost.

Q2: Do you provide after-sales service?
A2: Yes,the warranty is 3 years, if any quality problems on our side in this period, we can send new one as replacement.

Q3 What is your company's advantage?
A3: We only supply high level quality of lithium battery and we guarantee on-time shipment,we also provide excellent after sales service

Q4: Do you accept OEM/ODM?
A4: Yes,it is available.

Q5: What is your lead time for the mass production?
A5: General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.

Q6:Are you battery real capacity?
A6:All of our battery cells with Grade A,100% new and real capacity.

Q7:Are you a factory or a trading company?
A7:ALL IN ONE Battery Technology Co.,Ltd. is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer,welcome to visit.

Q8: What kind of certificates do you have?
A8: We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3 if your order quantity is big.

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
