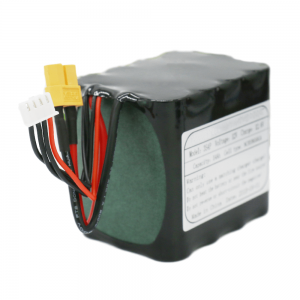

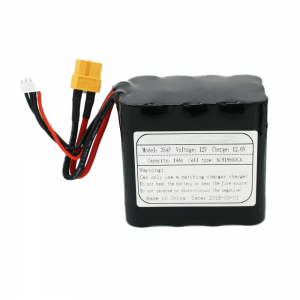

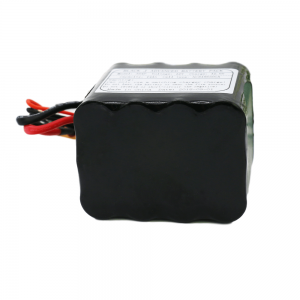

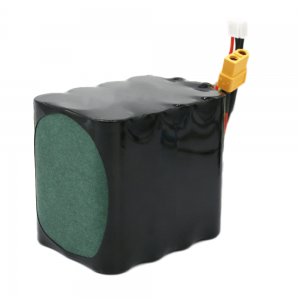

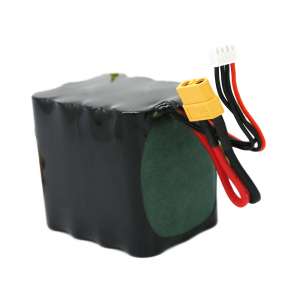

Rechargeable 18650 Battery Cells 3S4P Li-ion Battery Pack 11.1V 10Ah for Solar Led Lamp

2020-12-12 03:36

Product Information
ModelAIN18650-3s4p battery
Nominal voltage12v
Nominal capacity10ah
Shapecan be customized
Max Size(customized)thickness × width ×length (mm)
58*95*75(with pcm)
Max charge current5000MAH
Charging methodcharge with constant current 1C to 12.6v,then charge with constant voltage 8.4v, till charge current less than 0.01C
Discharge current5000mah
Discharge cut-off voltage the over-discharge detection voltage of PCM
Operating environmentCharging, 0°C ~ 45°C ; 65±20%RH
Discharging, -10°C~60°C ; 65±20%RH
Storage environment-10°C~45°C
65±20%RH
storage for a long time(>3 months) and the storage condition shall be:<35°C;65±20%RH;
CycleLife500times
Charging AttentionCharging current and charging voltage should be less than specified in the Product Specification.
The charger shall be designed to comply with Specification.
It is dangerous that charging with higher current or voltage than Product Specification may cause damage to the cell electrical,mechanical safety performance.



Main Feature of this 12v 10000mah battery:

[LIGHT WEIGHT] Weight is only about 569g, very easy to carry.

[HIGH DISCHARGE RATE] This battery discharge rate is 3C, suitable for high discharge current application.

[RELIABEL GRADE A CELLS] We choose high end cells , performance is good, very safe but price is more competitive.

[1 YEAR WARRANTY] If has quality problem within one year, we can help fix or send new one for free, you don’t need to worry about after sales problem.

[CUSTOMIZED &SAVE TIME] Battery cells brand, size, capacity, voltage, connector…most parameters can be changed according to your request. You don’t need to take too much time to search an exist model.

Related Lithium Batteries

Application

18650 li-ion battery Model Table

NO.   ModelCapacityvoltage                Size Weight
mAh3.7VTWLTypical
1186502000mAh3.7V19.0mm19mm68mm50g
2186502000mAh3.7V19.0mm19mm70mm46g
32S18650T4400mAh3.7V19.0mm19mm135mm110g
42S185001400mAh7.4V19.1mm38mm53mm71g
52S186502200mAh7.4V19.0mm38mm68mm110g
63S186532200mAh11.1V19.0mm56mm68mm145g
74S186502200mAh14.8V19.0mm75mm68mm197g
86S2P186504400mAh24.0V38.0mm115mm72mm600g

Packing And Shipping

FAQ

1.Q:Are you really factory or just trade company?
A: We are factory, founded in 2010, if you don’t believe our words, we can show you a live video.

2.Q: How long is the warranty time?
A: Warranty time is 12 months for Li-ion/li-polymer battery and 24 months for LiFePO4 battery. Our battery defective ratio is under 0.2%, we will repair defective batteries for free and bare shipping fee if it’s quality problem.

3.Q: How to proceed with an order?
A: We make customized battery, with check details such as application, voltage, capacity, size, discharge current, order quantity, etc., then quote based on your request, if no problem ,we can draft sample order for your confirmation and arrange payment, then we make sample for testing.

4.Q: How’s your leadtime?
A: 2-5 days for samples, 15-25 days for mass production. If it’s special model or complex design, leadtime will be longer.

5.Q:Is it OK to print my logo on it?
A: Yes, as long as you provide authorization to us, we will print logo on battery.

6.Q: What’s the payment terms?
A: Sample fee should be 100% prepaid. For mass production, payment terms is 30% deposit, 70% balance to be paid before shipment. For big amount, we can discuss better payment terms for you after 2-3 orders.

Note: We are a battery manufacturer. All products do not support retail, please contact us for product prices!
