ALL IN ONE 48V 51.2V 100Ah Solar System Lithium Lifepo4 Battery Household Power wall 48V 5Kw 10Kw

2021-03-05 10:13

Specification:

Technical Parameters
NoItemParameters
1.PerformanceTypeLiFePO4 Battery (Cell 3.2V 100Ah
Nominal Voltage51.2V
Rated Capacity100Ah(0.2C/25°C)
Operating Voltage Range42V~57V (Typical: 51.2V)
Charging Voltage57V
Discharge Cut-off Voltage42V
Charging Current (Max)60A
Discharging Current (Max)100A
DimensionsLength520mm
Width460mm
Height200mm
WeightAbout 52.5KG
2.FunctionInstallation MethodWall-mounted
CommunicationRS485
Terminal StudM8 Bolt


Alarm&Protection

Over Voltage, Under Voltage, Short Circuit, Over Current, Over Temperature, Low Temperature Protection, etc.
3.Working ConditionCooling ModeAutomatic Cold And Hot
Altitude≤4000m
Humidity15%~85%
Operating TemperatureCharge0°C~50°C
Discharge-10°C~60°C
Recommended Operating TemperatureCharge15°C~40°C
Discharge15°C~40°C
Storage0°C~35°C

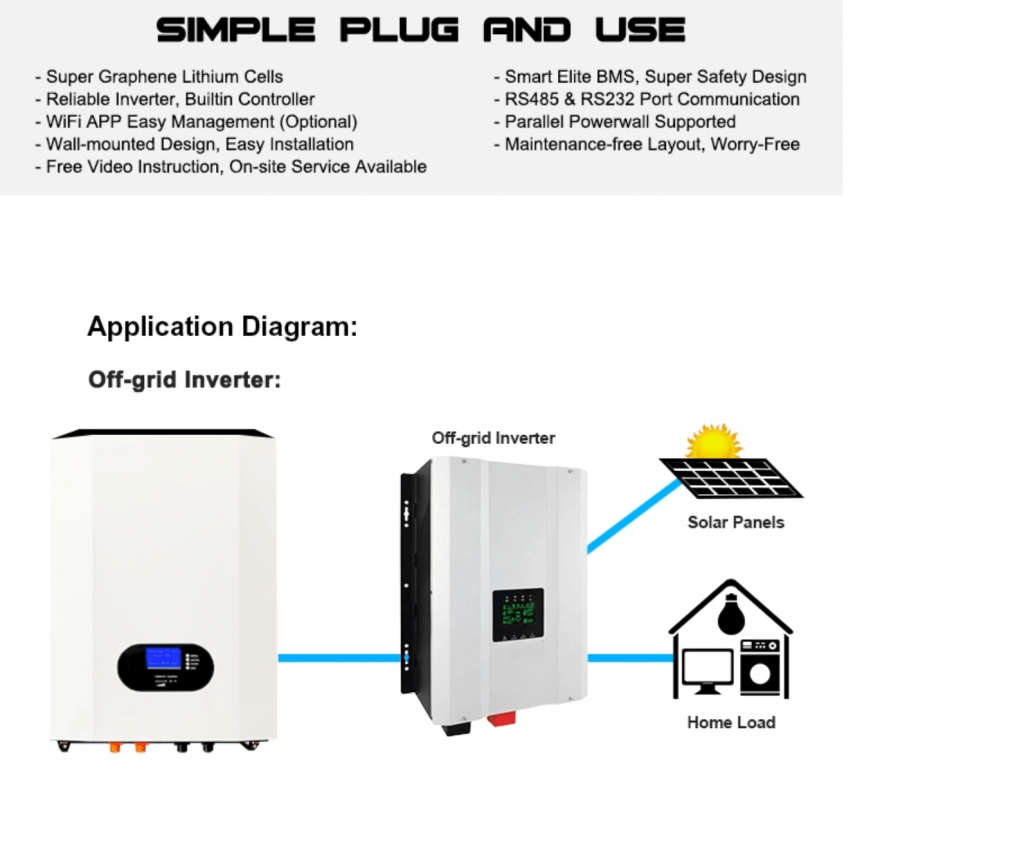

Application Field: Telecommunication, PV Energy Storage, Household Energy Storage etc.









Production Describation

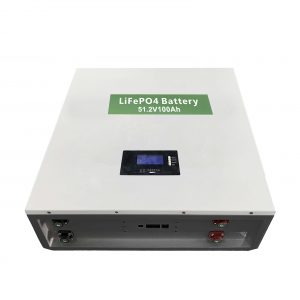

1. 51.2V 100Ah LFP100Ah-16S1P LiFePO4 Battery Packs

2. Real Capacity: 100Ah

3. Professional Factory: OEM/ODM are warmly welcome.

4. UL / CE / ROSH / MSDS / UN38.3 are be approved.

5. High Energy Density, Long Lifecycle.

NO.ItermSpecification
1Capacity100Ah
2Voltage51.2V
3Max. Charge Voltage57.0V
4Discharge Cut-off Voltage42V
5Standard Charge Current60A
6Max. Charge Current 100A
7Standard Discharge Current 60A
8Max. Continuous Discharge Current100A
9Pulse Discharge Discharge at 10's 200A 1s
10Internal Resistance
11Cycle Life6000 Times
12Dimension435*875*190mm
13Weight102 KGs
14Operation Temperature-20°C-60°C

Our Services

1.Experienced LiFePO4 / Lithium ion Battery & Pack supplier.

2. Professional technical, prodction & servise team for your service.

3. Alibaba golden supplier, factory recognized by ISO.

4. 7 days / 24 hours service for you, all questions will be dealed within 24hours.

5. Satable Quality--Come from superior material supplier & perfect quality control system.

6.Lower Cost--Not the cheapest but the lowest at the same quality.

7.Good Service--Satified service before and after sale.

8. Delivery Time-- 5-10 Days.

9. Warranty Period--2 Years.

Our Factory

Packing And Shipping
1. UPS / DHL / EMS / HK EMS / FEDEX / HK post / TNT and so on express(door to door)
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantitie
4. Normally, it will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.

FAQ

(1). How do we place an order?
Please kindly send us an email specifying the item, quantity, payment or other specification to place an order.

(2). Your battery can meet CE RoHS requirements?
Our battery are with the certificate of CE/RoHS.

(3). How would the goods be shipped?
We ship via UPS,DHL ,FEDEX and sea transportation normally.

(4). Can you print my picture or logo on the battery cover?
Yes, OEM is available,we can print your picture or logo on the battery case, and you can offer your logo.

(5). What kind of guarantee you give?
Our battery the warranty time is 2 years.

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
