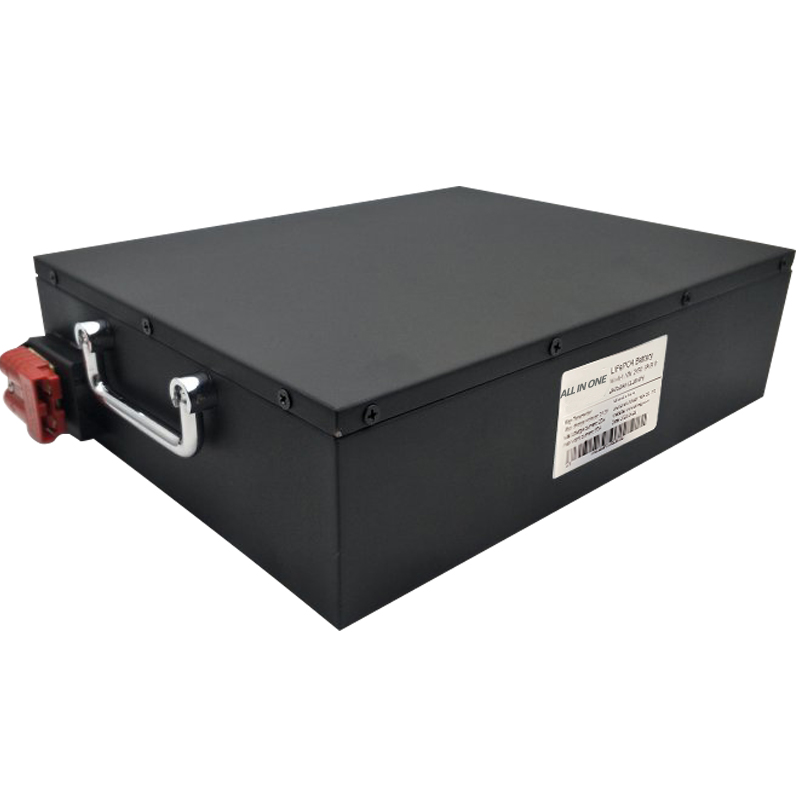

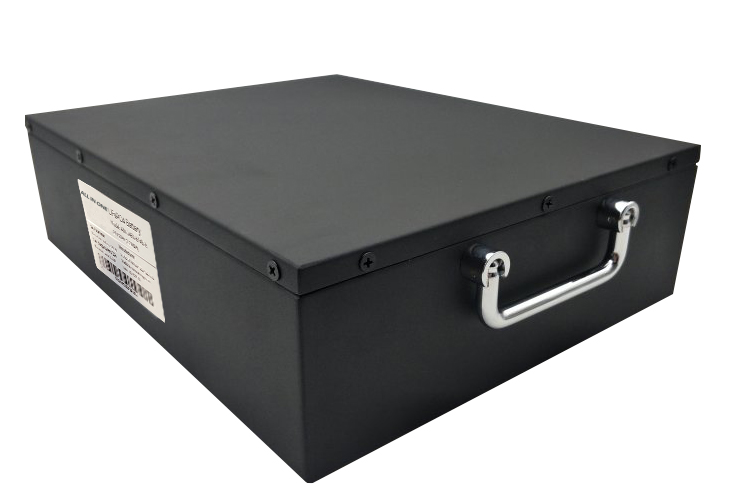

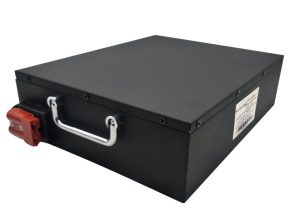

light weight 24V50Ah li-ion battery with RS4835 communication for AGV robot

2021-01-06 02:09

Specification
Item
Parameter
Remark
Product model
AIN-2450-SPAX
Battery type
Li-ion battery
NCM
Nominal voltage
24V
7S
Nominal capacity
50Ah
Max. charge voltage
29.4V
Min. discharge voltage
19.6V
Max. charge current
50A
Fast charging
Max. discharge current
50A
Charge mode
CC-CV
Protection
OVP/UVP/DOCP/COCP/SCP/OTP/UTP
Communication type
RS485
Terminal
Positive/Negative:SBS50/Red
Communication: Aerial socket
Shell
Metal
Work temperature
Charge: 0~50℃
Discharge: -20~60℃

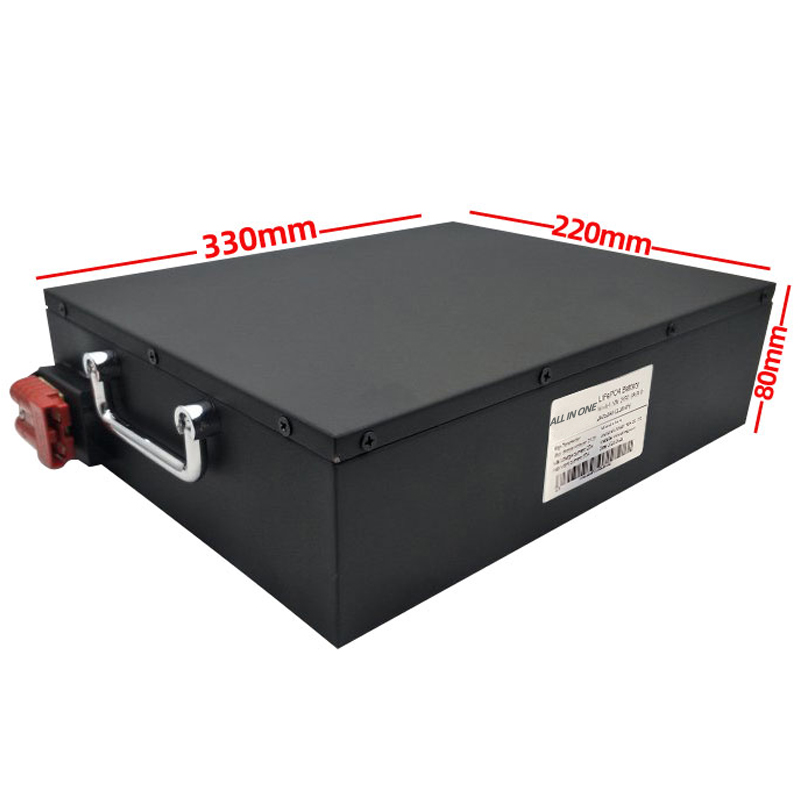

Size
330*220*80mm
L*W*H
Weight
9kg(about)

Lithium ion battery features
• Operation temperature: -20~60 C
• Lighter weight smaller size: half size of lead acid battery,
• Clean and Green energy, no toxic material contained.
• No memory effect, highly efficient charge anytime, no reduction of capacity.
• Low self-discharge<3% monthly and good discharge performance at high/low temperature.
• Long life=2000 times, 6-8 times of lead acid battery,large capacity and good shock resistance

Related LiFePO4 Batteries

Applications
⇒ UPS, Solar, Wind, Mobile generator, Back up power
⇒ Solar power bank, Solar LED lighting, Solar street light
⇒Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle
⇒Electric drill, electric saw, lawn mower and so on
⇒Remote control cars, boat, aircraft, toys
⇒Medical devices, equipment and portable equipment
⇒Blutooth, GPS, Wearable device, Power supply, Wireless

Our Factory



Packing And Shipping

FAQ
Q1: Can you accept OEM and ODM service?
A: Yes, it's available.
Q2: Can I have a sample order for battery?
A: Yes, we welcome sample order to test and check quality.
Q3: Do you have any MOQ limit for battery?
A: Depends on different models.For the very regular models,the MOQ is low.
Q4: Are you a factory or trading company?
A: We are a factory and trading, an integrated company.
Q5: What's the payment term?
A: We accept T/T, 30% deposit & 70% balance payment before shipping, and Western Union.
Q6: When can I get the price?
A: Our sales will quote to you within 24 hours exclude public holiday.
Q7: How about the shipment?
A: We can ship the goods by air, by sea or by express.

Note: All products do not support retail, please contact us for product prices!
