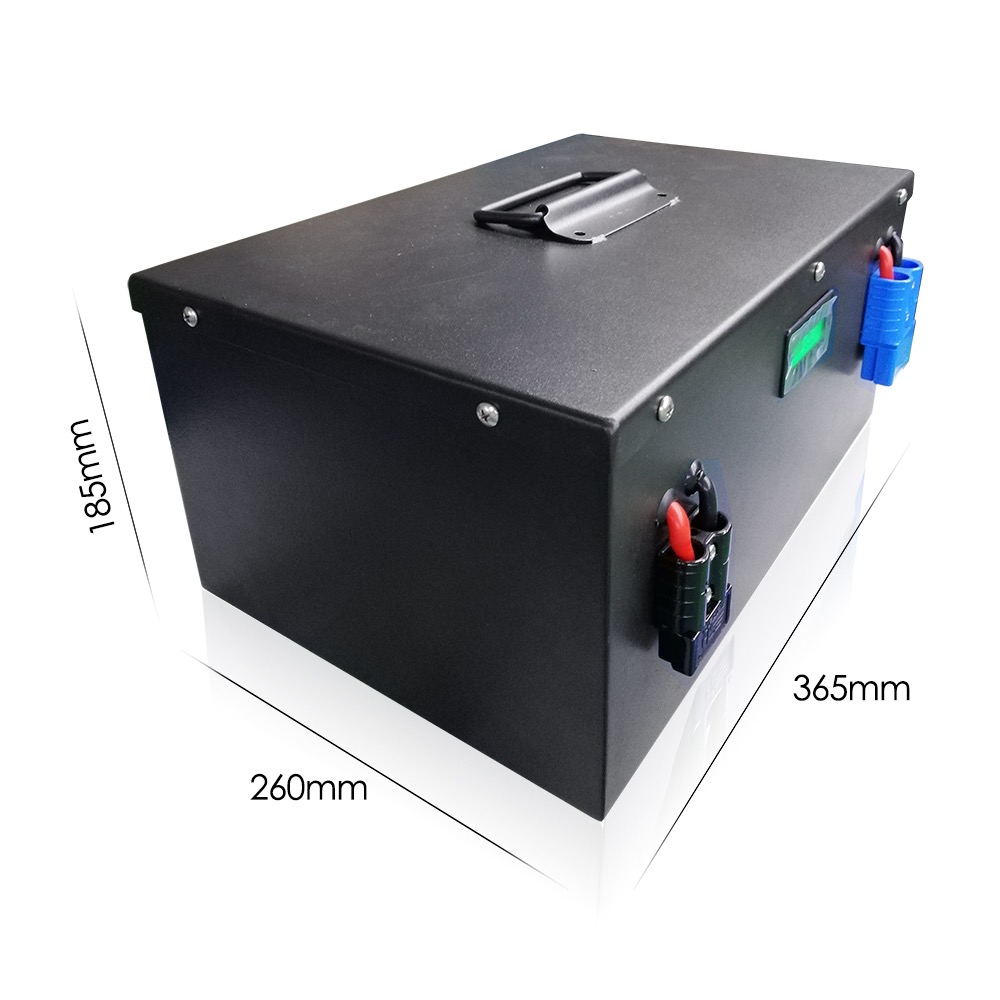

Customized lifepo4 24V 100Ah lithium battery

2021-01-14 00:59

Specification
Volt
25.2V
Capacity
100Ah (0.2C to19.6V at 25℃)
Watt
2520Wh
Internal resistance(AC)
≤150mΩ
Cycle life
>1200 cycles @0.2C 80%DOD
Discharge
<3%
Charging volt
29.4±0.2V
Charging type
0.2C to 29.4V, then29.4V,charge current to 0.02C (CC/CV)
Charging current
10-80A
Peak charging current
100A
Charging cut-off volt
29.4V±0.2V
Constant current
10-80A
Peak constant current
100A
Discharge cut-off current
19.6V
Case
PVC and Custom
Dimension(mm)
522*238*218
Weight (lbs./kg.)
18.5kg
Terminal
M8 and custom
Communication protocol (Optional)
RS485/CAN2.0
Extend (Optional)
LED/bluetooth

Features
1.Built-in automatic protection for over-charge,over-discharge and over-temperature conditions
2.Maintenance free
3.Internal cell balancing
4.Communication of monitored data via Battery Management System (BMS)
5.Thousands of cycles,100% DOD,under normal conditions
6.Can be charged using most standard lead-acid chargers (set for AGM/GEL cells)
7.Flame retardant plastics

Application
1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
3. E-tool: electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices, Telecom base Station
6. Small medical equipment and portable equipment

Related LiFePO4 Batteries

Our Factory



Packing And Shipping

FAQ

1.Are you factory?

A:Yes, we are factory In Anhui China. Welcome to visit our company at any time when you come to China.

2.Do you have current sample in stock?
A: Usually we don't have, because different customers have different requests, even the voltage and capacity are the same, other parameters maybe different. But we could finish your sample quickly once order confirmed.

3. What's the delivery time for mass production?
A: Usually 15-32days, it depends on the quantity, material, battery cell model and so on, we suggest to check delivery time case by case.

4.OEM&ODM are available?
A:Sure, OEM&ODM are welcome and Logo can be customized too.

5.What is the normal lifetime about LiFePO4 battery?
A: More than 2000 times.

6.What is your MOQ?
A: lithium polymer battery: 5000 pcs. li-ion battery pack: small order can be acceptable.

 7. How to maintain the battery?
A: The battery should be stored in clean, dry, ventilated, dark environment
when not using,keep it after full charge, recharge it every 3 months or 6 months.

8.Why choose ALL IN ONE?
A: 1) A professional sales team which provide consultant service and the most competitive battery solutions.
2) Wide-range battery products to satisfy different customer's requirement.
3) Quick response, every inquiry will be replied within 24 hours.
4) Good after-sale service, long product warranty and continual technique support.
5) With 10 years-experience for manufacturing lithium battery.

Note: All products do not support retail, please contact us for product prices!
