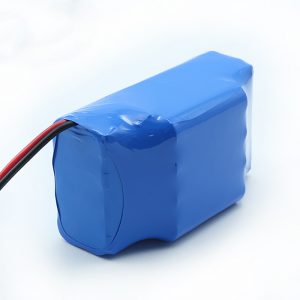

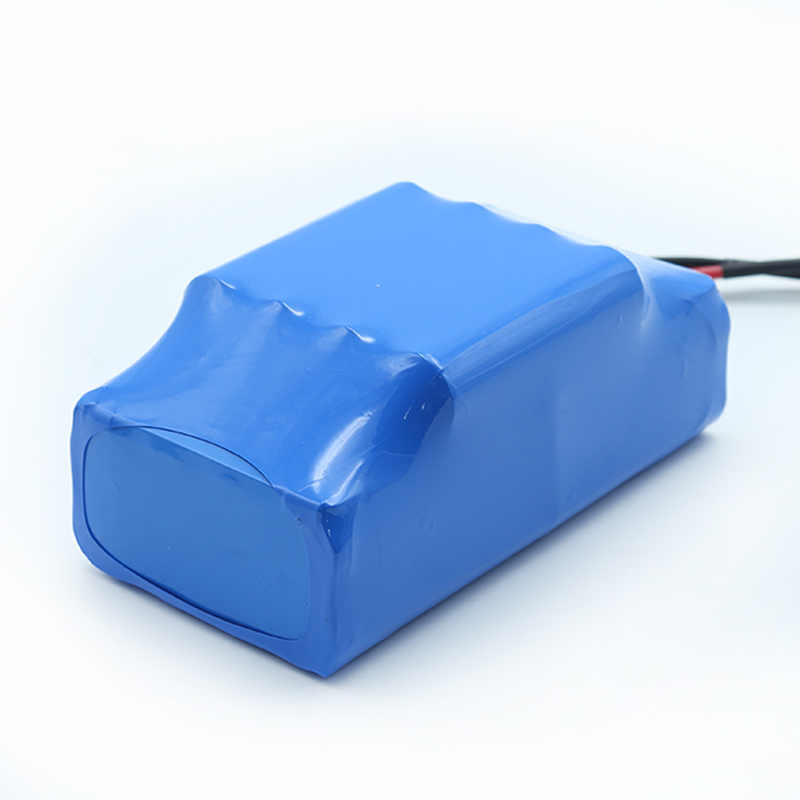

li ion battery pack 36v 4.4ah for electric hoverboard

2020-11-16 10:32

Specification

ItemsParameter
Battery model36v 158wh li ion battery pack
Nominal voltage36V
Minimum capacity4.4AH(0.2C discharge)
Charging voltage4.2V
Discharging cut-off voltage3V
Per Standard charging0.2C /4.2V
Per Max charging1.0C /4.2V
Per Standard discharging0.2C/3.0V
Per Max dischargingcontinuous discharge1.0C/3.0V
non-continuous discharge2.0C/3.0V
Per Shipment voltage≥3.85V
Per Battery pack impedance≤80mΩ
Operating temperatureCharging:    0°C ~ 45°C
Discharging: -20°C ~60°C
Storage (At 50% SOC and specified temp,-10℃~25℃(12 months ≥85% )
recoverable capacity in % vs time )-10℃ ~45℃(6 months  ≥85% )
-10℃~55℃(1 month   ≥90% )
20±5℃ is the recommended storage temperature
Visual InspectionThere should not be any remarkable scratches, cracks,
bolts, cauterization, deformations, swelling, leakage
and so on the surface of the cell.
Reference standardGB/T 18287-2013,IEC/EN61960, UL1642

ALL IN ONE Services, NO. 1 Service!

1. Guaranteed Quality ---Less than 0.1% Repair Rate
2. Long - Term Warranty ---Up to 2 Years
3. Lead Time ---Fastest Speed in China
4. Accredited Certificate ---CE & RoHS, FCC, UL etc
5. After - Sale Service ---RMA 24/7 Technical Support
6. One - Stop Solution --- Fast Reply, within 12Hours

We offer you better prices and same quality products as you have always, to make you much more competitive!

1. We always take controlling company cost as very important part of our work, instead of making good company image (make too big office not that useful, and too many staffe with low efficient)!

2. After these many years' experience in company management and sales in this field, we are capable to offer customers real best products in really competitive prices

3. AIN will focus more in bringing business success for its partners! One important point is, we cut down our own profit and give more profit spaces for our partners to compete in their markets!

Make the decision by cooperating with AIN, you will get as many orders as you want!

Related Litihium Battery

Application

Packing And Shipping

FAQ

1. What warranty do you provide?
The period of warranty is 12 months from the date of shipment. AIN guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customers abuse and misuse.

2. What are the available payment terms?
We accept Western Union and TT.

3. What is the lead time?
It depends on the order quantity.
For the inventory item, 3 to 5 days after recipt of payment.
For none-stocked item, 15 - 25 days after recipt of payment.

4. What are the available shipping methods?

We can make shipment by UPS/FEDEX/DHL/TNT/EMS or sea and air. Other shipping terms can also be arranged according to specific requirements.

Note: All products do not support retail, please contact us for product prices!
