Series Vs. Parallel Connections Explained

2020-08-11 08:13

While researching lithium batteries, you’ve probably seen the terms series and parallel mentioned. We frequently get asked the question, "what’s the difference between series and parallel”, “can ALL IN ONE batteries be connected in series” and similar questions. It can be confusing if you’re new to lithium batteries or batteries in general, but hopefully we can help simplify it.

Let’s start at the beginning…your battery bank. The battery bank is the result of connecting two or more batteries together for a single application (i.e. a sailboat). What does joining more than one battery together accomplish? By connecting the batteries, you either increase the voltage or amp-hour capacity, and sometimes both, ultimately allowing for more power and/or energy.

The first thing you need to know is that there are two primary ways to successfully connect two or more batteries: The first is called a series connection and the second is called a parallel connection.

Series connections involve connecting 2 or more batteries together to increase the voltage of the battery system, but keeps the same amp-hour rating. Keep in mind in series connections each battery needs to have the same voltage and capacity rating, or you can end up damaging the battery. To connect batteries in series, you connect the positive terminal of one battery to the negative of another until the desired voltage is achieved. When charging batteries in series, you need to utilize a charger that matches the system voltage. We recommend you charge each battery individually, with a multi-bank charger, to avoid imbalance between batteries.

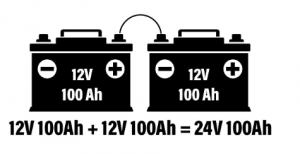

In the image below, there are two 12V batteries connected in series which turns this battery bank into a 24V system. You can also see that the bank still has a total capacity rating of 100 Ah.

Parallel connections involve connecting 2 or more batteries together to increase the amp-hour capacity of the battery bank, but your voltage stays the same. To connect batteries in parallel, the positive terminals are connected together via a cable and the negative terminals are connected together with another cable until you reach your desired capacity.

A parallel connection is not meant to allow your batteries to power anything above its standard voltage output, but rather increase the duration for which it could power equipment. It’s important to note that when charging batteries that are connected in parallel, the increased amp-hour capacity may require a longer charge time.

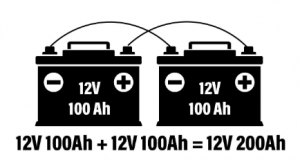

In the example below, we have two 12V batteries, but you see the amp-hours increase to 200 Ah.

Now we get to the question, “Can ALL IN ONE batteries be connected in series or parallel?”

Standard Product Line: Our standard lithium batteries can be wired in either series or parallel based on what you’re trying to accomplish in your specific application. ALL IN ONE data sheets indicate the number of batteries that can be connected in series by model. We typically recommend a maximum of 4 batteries in parallel for our standard product, however there may be exceptions that allow for more depending on your application.

High Performance Series: HP Series batteries can be connected in parallel only.

InSight Series: InSight batteries can only be connected in parallel and allows for up to 10 batteries in parallel.

It’s important to understand the difference between parallel and series configurations, and the effects they have on your battery bank’s performance. Whether you’re seeking an increase in voltage or amp-hour capacity, knowing these two configurations is vastly important in maximizing your lithium battery’s life and overall performance.
