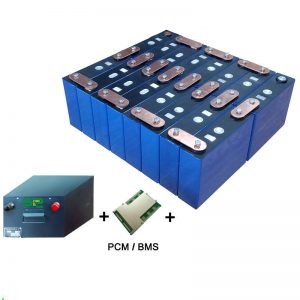

LiFePO4 Prismatic 48V 240AH Forklift Battery Pack LiFePO4 Lithium Electric vehicle power supply with customization

2020-08-11 01:18

ModelAIN2317493
Nominal Voltage 48V


Capacity

.  Max: 240Ah

·  Min : 239Ah

Charging Current·  Standard Charging: 5A (0.2C rate)

·  Max. Charging: 25A (1C rate)

Max. Discharging Rate·  Max. Continuous Discharging: 3C

·  Max. Peak Discharging:5C

Cut-off Voltage·  Charging: 4.20V

·  Discharging: 2.0V

 Internal Resistance≤ 4mΩ  (At 0.2C rate, 2.0V cut-off)
DimensionsCustomized
Working Temperature·  Charging:   0℃~45℃

·  Discharging: -20℃~60℃

Storage Temperature·  ≤1month:  -10–45℃

·  ≤3month:    0–30℃

·  ≤6month:   20±5℃

Life Cycle>2000 times (80% of initial capacity at 0.2C rate, IEC Standard)

How safe are Lithium-Ion LiFePO4 Batteries?

Lithium Iron Phosphate chemistry(LFP,LiFePO4) is one of the most safe Lithium-Ion technology.This chemistry is not subject to thermal runaway, is non-flammable and is considered as non-hazardous by international regulation standards.

Each battery is fitted with a high quality BMS that ensure a safeguard role during battery operation.The BMS is designed to deliver high power in complete safety for a very spectrum of applications.

What can LiFePO4 battery be used for?

LiFePO4 batteries are commonly use for Marine,Recreational vehicles,Golf cart applications,CCTV,robotics,PV energy storage,etc...

YiChen LiFePO4 battery can be used for any system or application that would normally use Lead acid battery(AGM,GEL) in 12V,up to 48V. After removing the olf batteries,place LifePO4 batteries in the same way.

This 48v 240Ah lifepo4 battery is Specially designed for Electric forklift.

We ALL IN ONE support customization,can design and produce different capacity and size's battery system to meet different usage and requirements, Like Solar energy storage, telecom power supply, EV,Electric light & heavy commercial vehicle,Marine, Aircraft tractor,RV,UPS,Electric emergency back up power system,etc.

Packing

Our Normal Packing:

1)SLA replacement batteries and light weight batteries,are usually packed in single carton(per piece in 1 carton), protected by foam from top and button.
2)For heavy high voltage/high capacity batteries,are usualy packed with wooden frame for safe delivery.
OEM packing:
Since we're direct factory,we also support package customzition.While reach the OEM QTY,we can design and make according to your requirements.

Delivery

1) Sample order

Normally,the samples will be delivered by express(DHL,Fedex,TNT,UPS) or Air depending on different products. Large scale batteries will be probably delivered by ship.

2) Mass order

Air,Ship for selection,will deliver according to clients' decision.
3) We have got UN38.3,MSDS and other shipping port certificate.
FAQ

Q1: Can I have samples to test? And what is lead time for sample order?

Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement.

For normal in stock product,2~5 days; For customized product,3~7days depends on requirements.

Q2: What is the warranty for the products?

1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system,Different products has different warranty,welcome to check before placing order.

Q3: What is your company's advantage?

We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity,high performance battery packs for 12v/24v/48v/80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V/460V/614V Aircraft tractors,heavy truck, Mine train,110v/220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.

Q4: Do you accept OEM/ODM?

Yes,welcome!

Q5: What is the lead time for the mass order?

Generally speaking,about 7~20 days depending on different items after getting down payment and confirmation about the samples.

Q6: What is the payment terms?

Sample payment accept Paypal,Western union, Escrow;and Mass order by T/T.

Q7: What kind of certificate can offer?

CE,RoHS,UN38.3,MSDS,etc,If need IEC-62133,PSE and others, please consult with us.



Note: All products do not support retail, please contact us for product prices!
